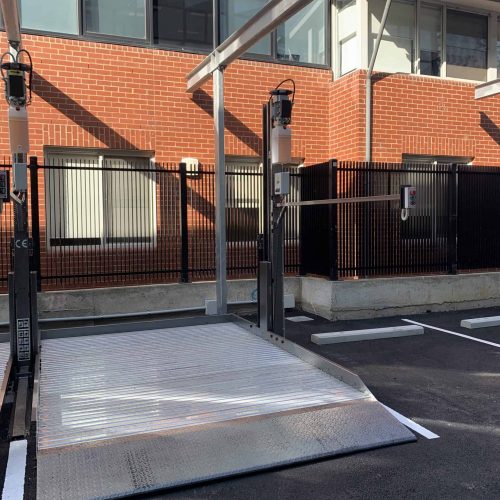

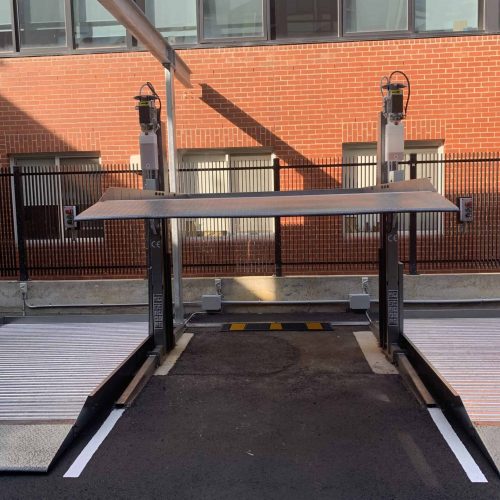

Dependent Two Level Above Ground Parking System
Lift Your Car. Double Your Parking Space.
The Duplé Parking System is a dependent two-level solution designed to maximise your parking capacity—perfect for both residential and commercial environments.
Dependent parking system with two levels
Doubles the number of car spaces using hydraulic lifting
Suitable for both indoor and outdoor installation
Easy access to vehicle doors for user convenience
Operated via secure key-switch control
Standard 2000kg capacity, with upgrade options to 2300kg or 2600kg per parking position
Platform widths range from 2100mm to 2600mm
Modular construction allows for potential expansion based on site conditions
Single lifting column design for a compact footprint
CE Approved system with a low voltage Deadman control for safety
Whether you’re working on a residential build, hotel, or commercial space, the Duplé Parking System offers a reliable and flexible solution to increase parking without sacrificing accessibility or safety.
Power Requirements:
3-phase, 16A lockable isolator (to be supplied by builder)
Supply line: 3PH + N + PE, marked wire with protective earth conductor
Voltage:
415V
AMP Rating:
16A
Pump Noise Level:
<60 dB
Vehicle Length Capacity:
Standard system suits vehicles up to 5,000mm (maximum weight 2600kg)
Custom platform solutions available upon request for vehicles outside this scope
Vehicle Height Consideration:
Total vehicle height must include roof racks, aerials, and other attachments
Concrete Requirements:
Drive-level foundation and wall structure must be constructed from concrete
Minimum concrete quality: C25/30
Full Specifications:
Full specifications can be discussed with SDA in accordance with your specific site requirements.
Whether you’re planning for a residential, commercial, or mixed-use development, our expert team is here to help. We’ll work with you to understand your specific needs and provide a tailored solution. Contact us today to start the conversation.
