Turns one parking spot into two, with the simple turn of a key.

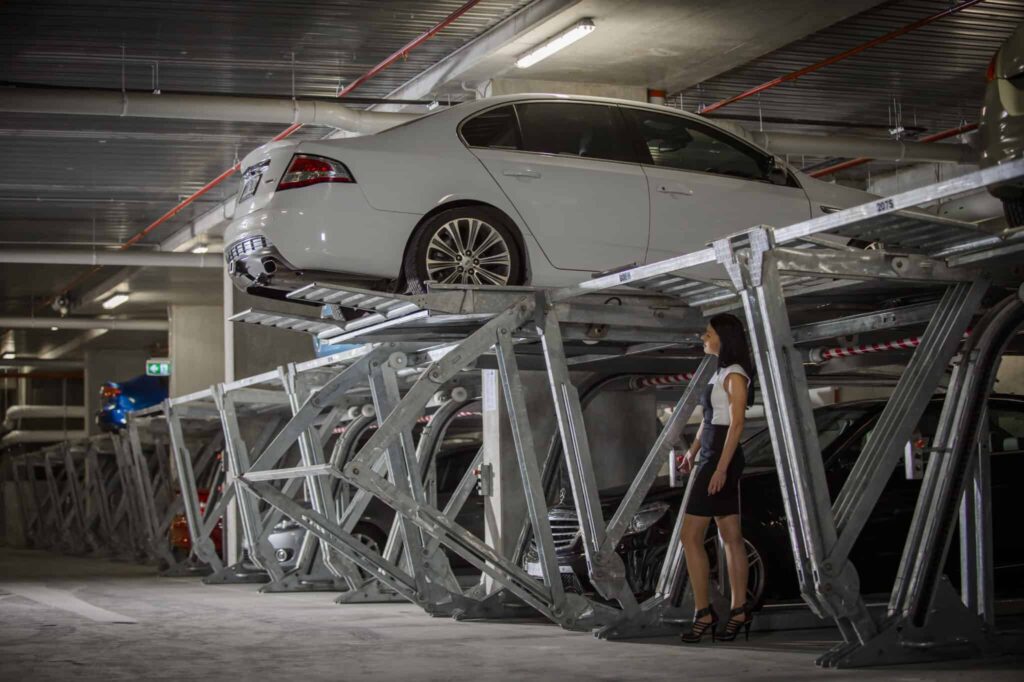

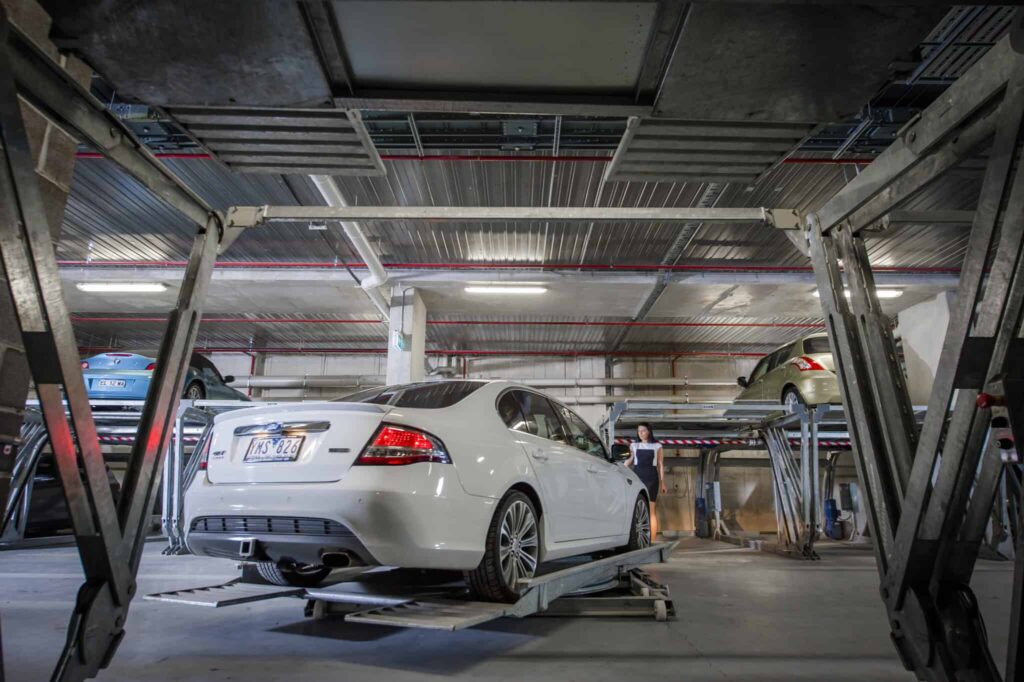

The EPS – Evolution Parking System transforms a single parking spot into two, effortlessly doubling your parking capacity. The cutting-edge hydraulic technology provides independent access to both the top and bottom vehicles, allowing the top car to be easily retrieved without needing to move the other vehicle. Simply lower the top car, and it’s ready to go!
This system is perfect for both residential and commercial spaces, providing a hassle-free experience with minimal effort required. The top vehicle is easily driven onto the rotating platform, without the need for complex maneuvering.
Installation of the EPS is simple, as no civil works are required, provided there is sufficient clearance. It can be retrofitted into existing developments, making it a flexible solution for spaces with limited parking.
Description
Independent parking system, turning one spot into two
Hydraulic technology for seamless operation
Easy retrieval of the top car without moving the bottom vehicle
Ideal for both residential and commercial spaces
Load Capacity
Standard: 2000kg per parking space
Optional upgrade: 2600kg per parking space
Applications
Multi-residential developments
Existing developments
Townhouse developments
Mixed-use developments
Maximum Vehicle Height (Upper Level):
1500mm
Ground to ceiling clearance: 3400mm
Maximum Vehicle Height (Lower Level):
1550mm
Power Requirement:
415V, 50 Hz, 8A
Dimensions:
Closed Position:
Length: 4,900mm
Width: 2,640mm or 2,540mm
Height: 2,100mm
Open Position:
Length: 10,550mm
Width: 5,330mm
Height: 2,100mm
Unit Weight:
1,650kg
Maximum Vehicle Values:
Bottom Car:
Length: 4,900mm
Width: 2,000mm
Height: 1,500mm
Distance between Axels: 4,900mm
Car Weight: Unlimited
Front Axle Load: Unlimited
Rear Axle Load: Unlimited
Top Car:
Length: 4,900mm
Width: 2,000mm
Height: 1,500mm
Distance between Axels: 2,800mm
Car Weight: 2,000kg
Front Axle Load: 1,200kg
Rear Axle Load: 800kg
Notes:
Height includes all elements attached to the roof, such as antennas.
** Top car maximum height is ceiling height minus 1,900mm.
*** For the top car, the minimum ceiling height required is 3,400mm for a 1,500mm vehicle height.
All measurements are in mm.
Whether you’re planning for a residential, commercial, or mixed-use development, our expert team is here to help. We’ll work with you to understand your specific needs and provide a tailored solution. Contact us today to start the conversation.
